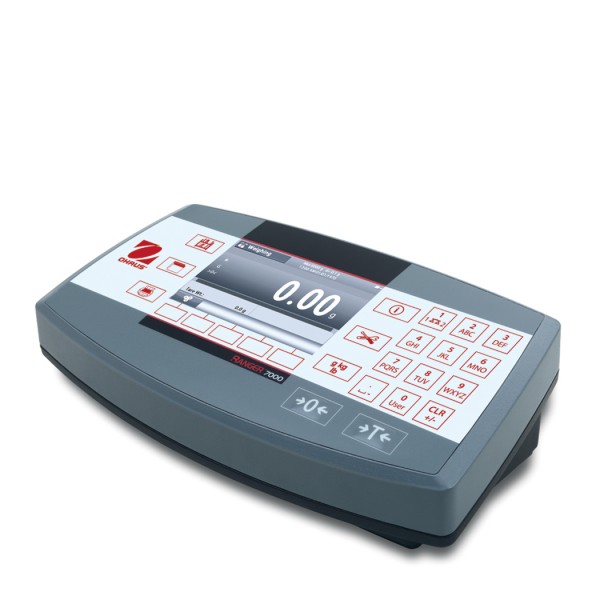

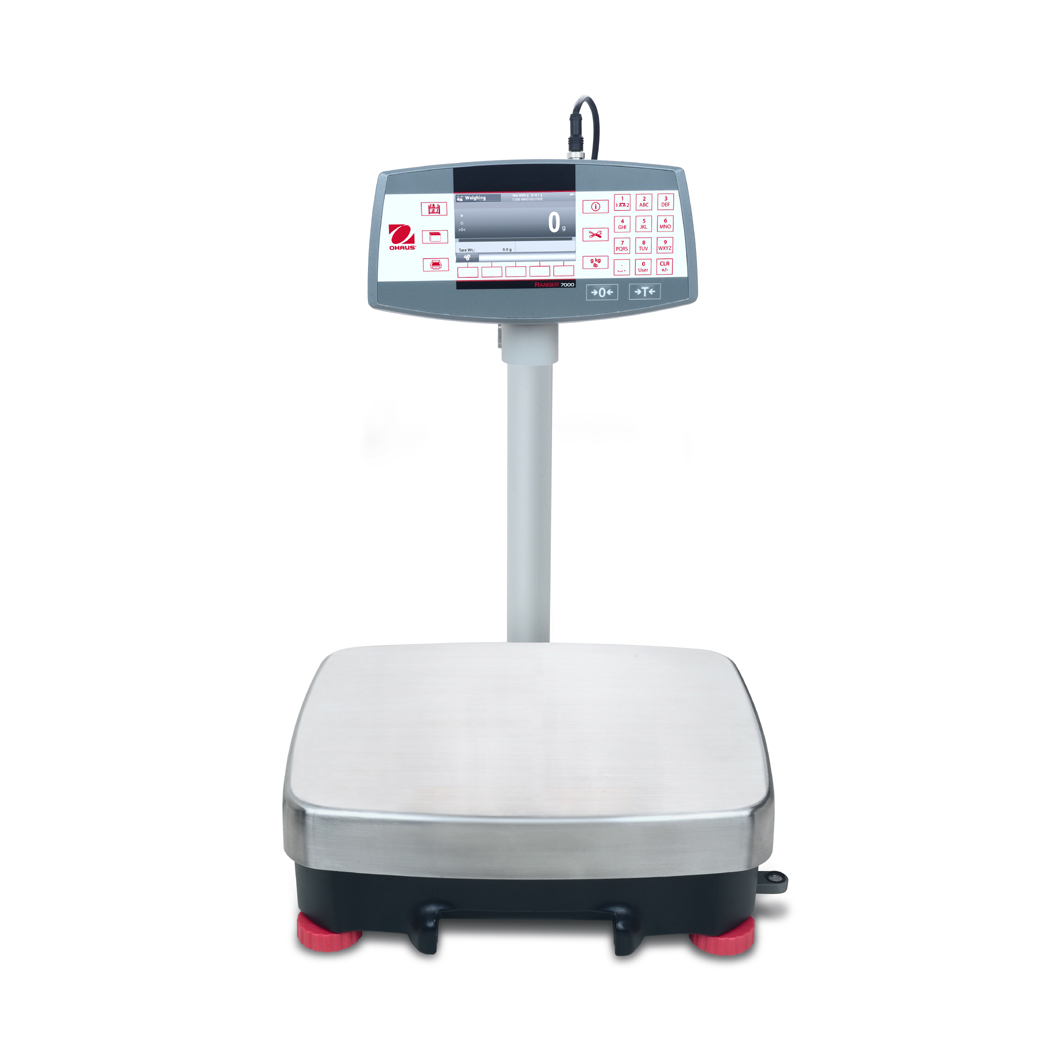

Ohaus Ranger 7000 BENCH SCALE
Ohaus Ranger 7000 BENCH SCALE - Image 2
Ohaus Ranger 7000 BENCH SCALE - Image 3

Simplifying even the most complex industrial applications.

Ten Advanced application modes for complex applications, possibility to control peripheral devices and/or scale platform with optional kit

Fast and accurate results thanks to 1 second stabilisation time and up to 75,000d or 350,000d display resolution.

Modular scale with IP54 cast metal housing and sealed metal indicator to ensure durability.

Ranger-7000-EU_807747381

Category:

Description

Model
Capacity
Readability (d)
(e)
Internal Calibration
Pan Size
Trade Approved
Price
R71MD3GB
 3 kg
 0.05 g
         red-cross
 280 mm x 280 mm
         red-cross
Contact us
R71MD3GB-M
 3 kg
0.5 g
         red-cross
 280 mm x 280 mm
         green-tick
Contact us
R71MD6GB
 6 kg
 0.1 g
         red-cross
 280 mm x 280 mm
         red-cross
Contact us
R71MD6GB-M
 6 kg
1 g
         red-cross
 280 mm x 280 mm
         green-tick
Contact us
R71MD15GB
 15 kg
 0.2 g
         red-cross
 377 mm x 311 mm
         red-cross
Contact us
R71MD15GB-M
 15 kg
 2 g
         red-cross
 377 mm x 311 mm
         green-tick
Contact us
R71MD35GB
 35 kg
 0.5 g
         red-cross
 377 mm x 311 mm
         red-cross
Contact us
R71MD35GB-M
 35 kg
 5 g
         red-cross
 377 mm x 311 mm
         green-tick
Contact us
R71MD60GB
 60 kg
 1 g
         red-cross
 377 mm x 311 mm
         red-cross
Contact us
R71MD60GB-M
 60 kg
 10 g
         red-cross
 377 mm x 311 mm
         green-tick
Contact us
R71MHD3GB
 3 kg
 0.01 g
         green-tick
 240 mm x 240 mm
         red-cross
Contact us
R71MHD3GB-M
 3 kg
 0.1 g
         green-tick
 240 mm x 240 mm
         green-tick
Contact us
R71MHD6GB
 6 kg
 0.02 g
         green-tick
 240 mm x 240 mm
         red-cross
Contact us
R71MHD6GB-M
 6 kg
 0.2 g
         green-tick
 240 mm x 240 mm
         green-tick
Contact us
R71MHD15GB
 15 kg
 0.1 g
         green-tick
 377 mm x 311 mm
         red-cross
Contact us
R71MHD15GB-M
 15 kg
 1 g
         green-tick
 377 mm x 311 mm
         green-tick
Contact us
R71MHD35GB
 35 kg
 0.1 g
         green-tick
 377 mm x 311 mm
         red-cross
Contact us
R71MHD35GB-M
 35 kg
 1 g
         green-tick
 377 mm x 311 mm
          green-tick
Contact us

More Info

Display
4.3″ (109 mm) Full-color WQVGA graphic display with user-controlled brightness
Operation
AC power (included) or rechargeable battery (accessory sold separately)
Communication
Easy access communication port including standard USB and RS232 (included) and an optional third port of RS232 or Ethernet (accessories sold separately). GLP/GMP Data Output with Real Time Clock. Data Transfer Function.
Construction
Modular design, die-cast housing, removable stainless steel platform, integral weigh below hook, menu lock switch, level indicator
Design Features
Checkweighing lights with selectable operation and audible signal settings, several selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable brightness settings, auto-

Applications

Weighing

Parts Counting

Percent Weighing

Check weighing

Dynamic weighing (display hold)

Filling

Formulation

Differential weighing

Density weighing

Accessories

PCBA Kit, Alibi Memory

Ethernet Kit

RS232 Kit

2nd Platform kit, R71

in use cover R71

Discrete I/O kit 2-in 4-out R71

Rechargeable battery EX-Hicap R71

Column kit painted 400mm R71

Cable Extensions 9 m R71
